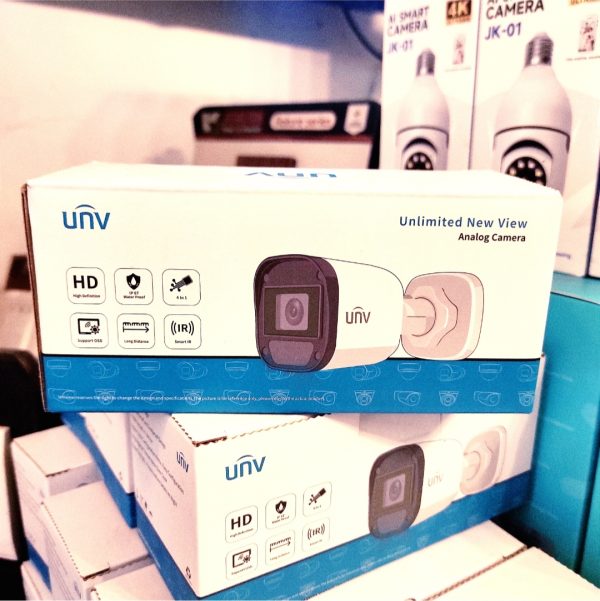

UNV 2MP 2.8MM CCTV CAMERA

Description

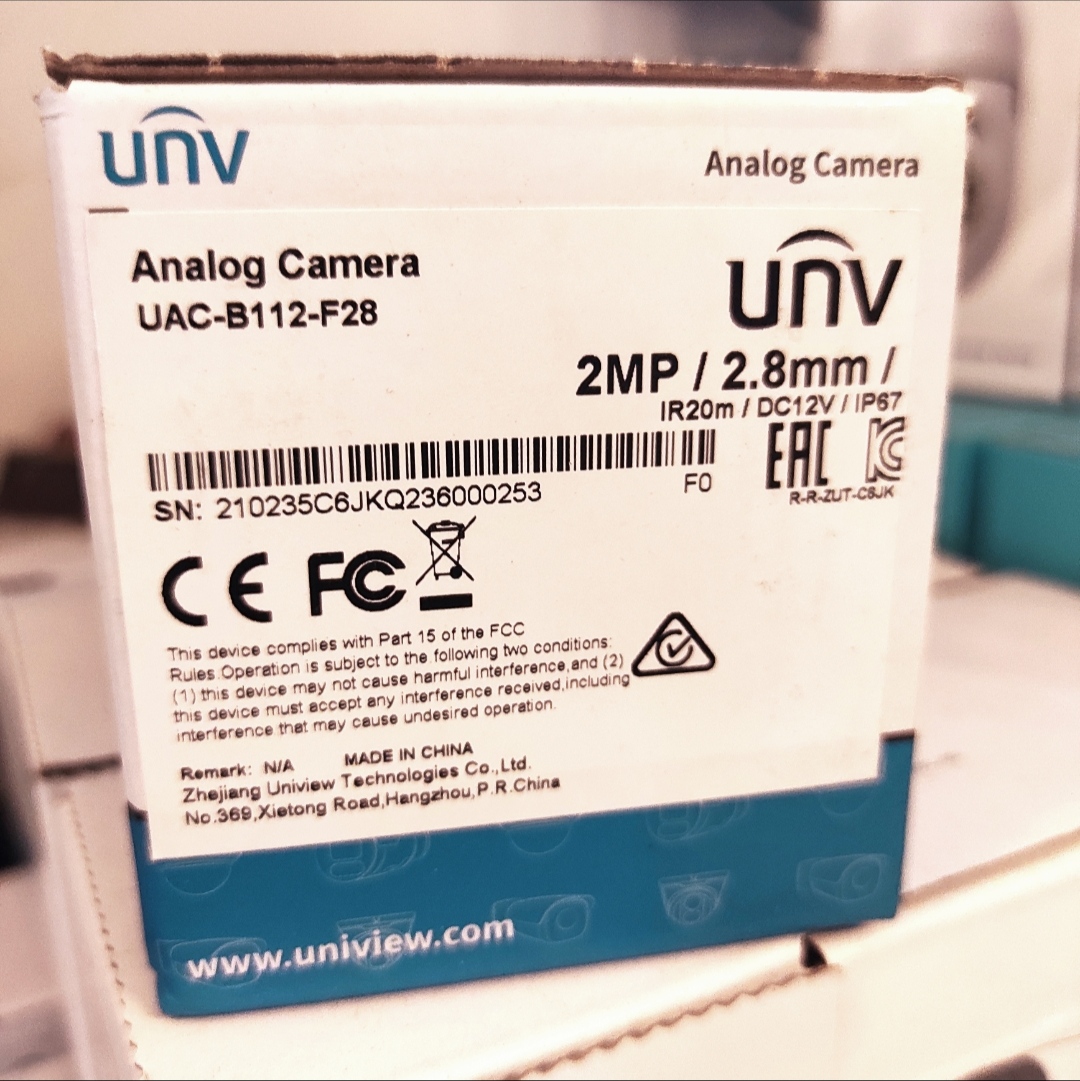

Model: UAC-B112-F28-W

Sensor:

• Pixel: 2MP
• Size: 1/3″
• Minimum illumination: 0.01 lux (F1.6, AGC ON), 0 lux (white light on)

Lens:

• Lens: 2.8mm
• Lens mount: M12
• Angle of view: H: 100.9°, V: 56.5°, D: 121.8°

Illuminator:

• Type: One white-light illuminator
• Illumination distance: 20m
• Lifetime: ≥60,000 hours

Video:

• Resolution:
  • 1080P: 1920(H)×1080(V)
  • 720P: 1280(H) ×720(V)
• Frame rate:
  • TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps
  • CVBS: PAL, NTSC
• Shutter time:
  • PAL: 1/25s-1/50000s
  • NTSC: 1/30s–1/50000s

Image:

• Exposure mode: 4 modes (Global, BLC, HLC, DWDR)
• Day/Night: 24/7 color images
• Digital noise reduction: 2D/3D
• White balance: Auto, Manual
• WDR: DWDR
• Flip: Supports 180° horizontal and vertical flip

Interface:

• Power: 5.5mm power interface
• Video output: BNC, supports TVI/AHD/CVI/CVBS

Operating Environment:

• Temperature: -30℃ to 60℃(-22℉ to 140℉)
• Humidity: ≤95% (RH, non-condensing)
• Surge protection: 4KV

General:

• Power: DC 12V(±25%), with reverse polarity protection, Max 2.4W
• Mount: 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
• Dimensions: 142mm63mm65mm (LWH)
• Material: Plastic
• Weight: 145g (0.32lb)

OSD Menu Language:

• 11 languages including English, German, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish

Certification:

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
• FCC (FCC 47 CFR part15 B)
• Safety: CE-LVD (EN 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
